Elevate window performance without adding extra panes

Guardian ClimaGuard IS 20 interior surface coating helps boost thermal insulation and solar control within insulating glass units. When placed on the fourth surface of a double-glazed unit with a minimum glass thickness of 6 mm, and combined with a 1.0 U-Value SunGuard™ SuperNeutral or eXtraSelective coating on the second surface, ClimaGuard IS 20 enables the glazing to reach a U-value of 0.9 W/m²K—delivering sub-1.0 performance without the need for triple glazing.

ClimaGuard IS 20 can also be applied to the sixth surface of a triple-glazed configuration to further enhance overall thermal performance.

ClimaGuard IS20
All Rights reserved

The image shown is a digitally rendered illustration intended to demonstrate the product’s application and may not be an exact representation of the actual product.

Product information

Substrates
  • Guardian ExtraClear 4-12 mm
  • Guardian NEXA 4-10 mm
Applications
  • Windows
Manufacturing Options
  • Must be Heat Treated
Recommended Coating Positions
  • Surface 1 (monolithic)
  • Surface 4 (double IGU)
Maximum Size
  • <3210x6300mm
Edge Deletion
  • No
Glass Type
  • Low E
Glass Functions
  • Thermal insulation
Fabrication Options
  • Can be used Monolithic
Appearance
  • Neutral
Calculate Performance Values & Generate BIM Files
Generate product performance data for custom glass make-ups and create detailed BIM object files for your project
Calculate
Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

  • Default Performance Data
  • Performance Calculations

  • Monolithic

  • Double Glazed

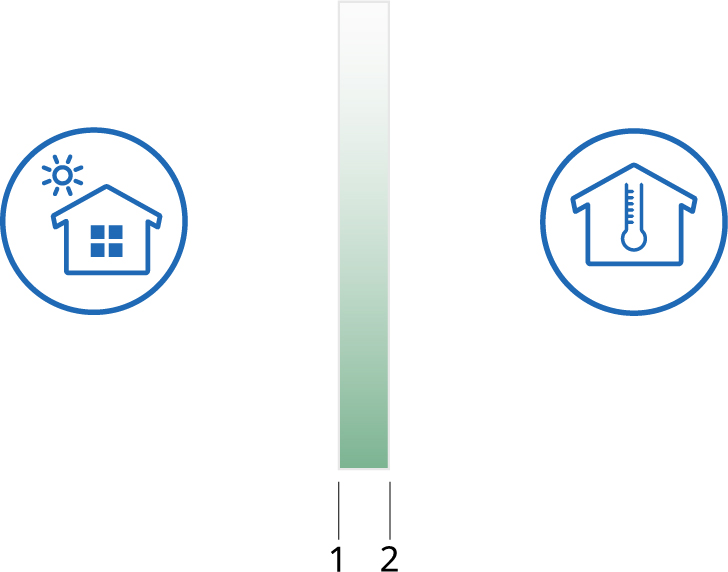

Monolithic

pim/components/structure/pim-mono

GLASS: Guardian ExtraClear (CE) Glass, 4mm (2-ClimaGuard® IS-20 (CE))

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light
Transmittance (τv)
85.7 %
Reflectance outside (ρv)
10.4 %
Reflectance inside (ρv)
10.6 %
General Color Rendering Index (CRI)
99.3
Ultraviolet
Transmittance UV (τuv)
66.4 %
Solar Energy
Solar transmittance (τe)
76.8 %
Reflectance outside (ρe)
11.6 %
Reflectance inside (ρe)
11.1 %
Solar absorptance (αe)
11.6 %
Solar Factor (g)
78.6 %
Shading Coefficient (sc)
0.90
Secondary Heat Transfer (qi)
1.8
Thermal properties
U-Value (Ug)
3.8 W/m²·K
Embodied Co<sub>2</sub>
[eq. kg/m²] A1-A3
10.71

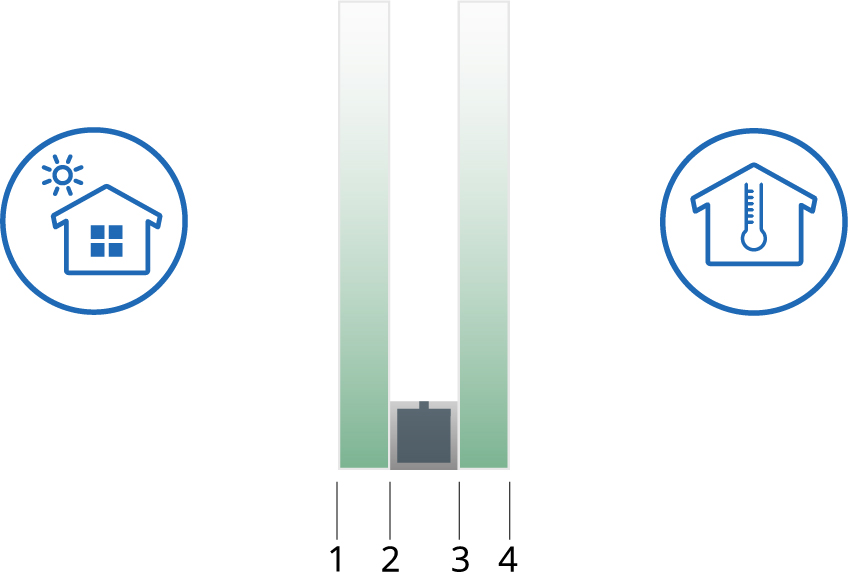

Double Glazed

pim/components/structure/pim-double

GLASS: Guardian ExtraClear (CE) Glass, 4mm (2-SunGuard® SN 70/37 (CE))

GAP: 10% Air, 90% Argon 16.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm (4-ClimaGuard® IS-20 (CE))

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light
Transmittance (τv)
67 %
Reflectance outside (ρv)
13 %
Reflectance inside (ρv)
14 %
General Color Rendering Index (CRI)
94
Ultraviolet
Transmittance UV (τuv)
10 %
Solar Energy
Solar transmittance (τe)
33 %
Reflectance outside (ρe)
42 %
Reflectance inside (ρe)
36 %
Solar absorptance (αe)
25 %
Solar Factor (g)
36 %
Shading Coefficient (sc)
0.41
Thermal properties
U-Value (Ug)
1.0 W/m²·K
Embodied Co<sub>2</sub>
[eq. kg/m²] A1-A3
21.42
